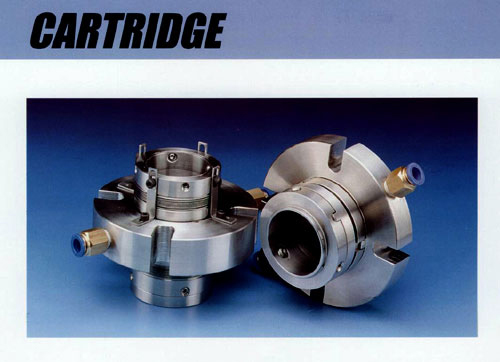

Mechanical seal /
Cartridge type (1) |
|
| |
 |
1. It consists of Double Seal form , and it can be maintained good mechanical Seal's driving condition when you inject Sealant to strong Poisoness , lots slurry contain material and also treat exterior touch of solid fluid.
Especially , Double Balanced Seal is suitable for high pressure and vacuum fluid's sealing.
2. It consists of Cartridge Type which is including sleeve and Gland Cover. So it's very convenience for assembling and dismantling also it has low installing inferiority and can save install time.
3. It consists of Stationary type and spring is attached fixed part so it can be used high speed revolution device and also prevent corrosion because spring is not disclosure to fluid.
It has superior activity to fluid which is containing slurry because of the Centrifugal of seal part.
4. It is installed Self-Aligning System so both shaft's misalignment and End Play are allowed three time's more than normal Double Seal.
5. Cooling System can be installed the only best way of Flushing. Therefore It doesn't need high cost of circulating system for Pressurization , Cooling and heating.
6. Standard Axis diameter from 20 to 150 is produced.
7. Possibly , application scope can be different from individual cast.
|
|
|
|
 |
